Dian Motors is proud to be the exclusive Canadian distributor of Amflow, a next-generation electric mountain bike brand redefining performance, power, and innovation.

Dealer Map

The Amflow PL series delivers an unrivaled combination of power, range, and weight, offering riders the most natural e-bike experience possible. Built in collaboration with  DJI and top bike designers, Amflow reimagines what’s possible in eMTB engineering—starting from the heart: the motor.

The DJI Avinox drive system delivers up to 850W of peak power and 105Nm of torque—packed into a lightweight, compact form. With seamless power delivery, customizable ride modes, and intelligent energy management, it offers effortless acceleration and responsive control across any terrain. Quiet, efficient, and beautifully integrated, Avinox sets a new standard for high-performance eMTB systems.

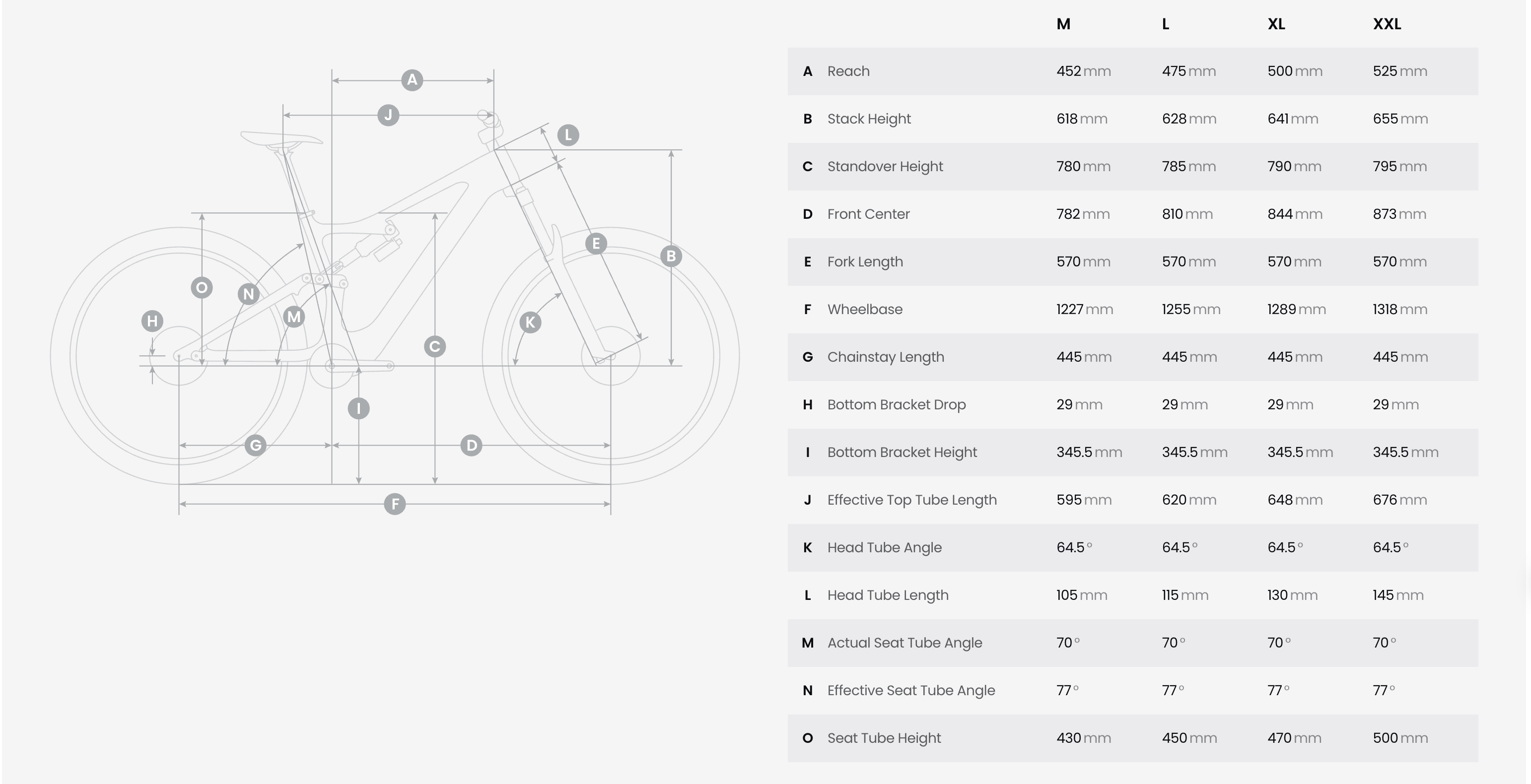

Geometry Chart

Compare Models

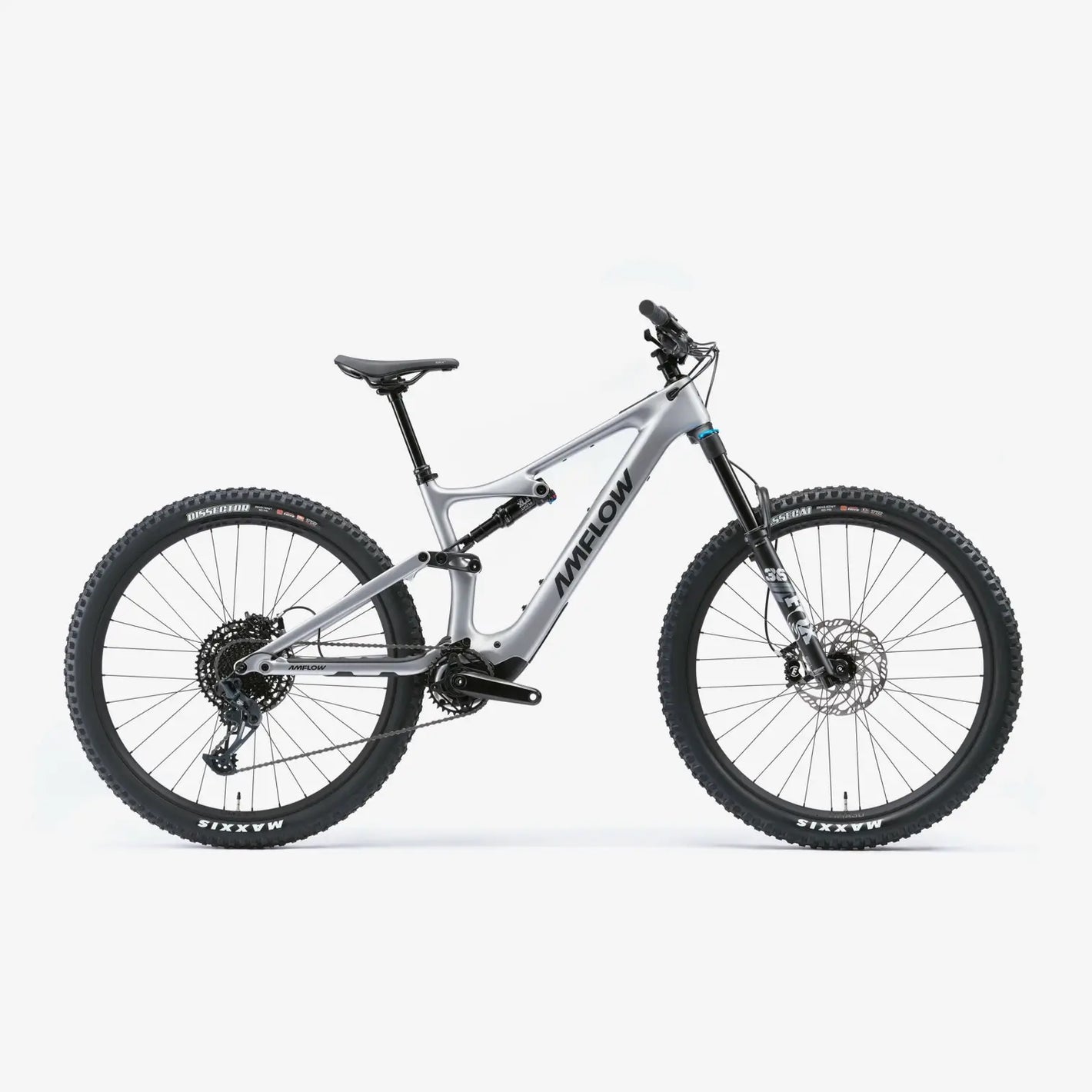

  • Amflow PL Carbon (800Wh)

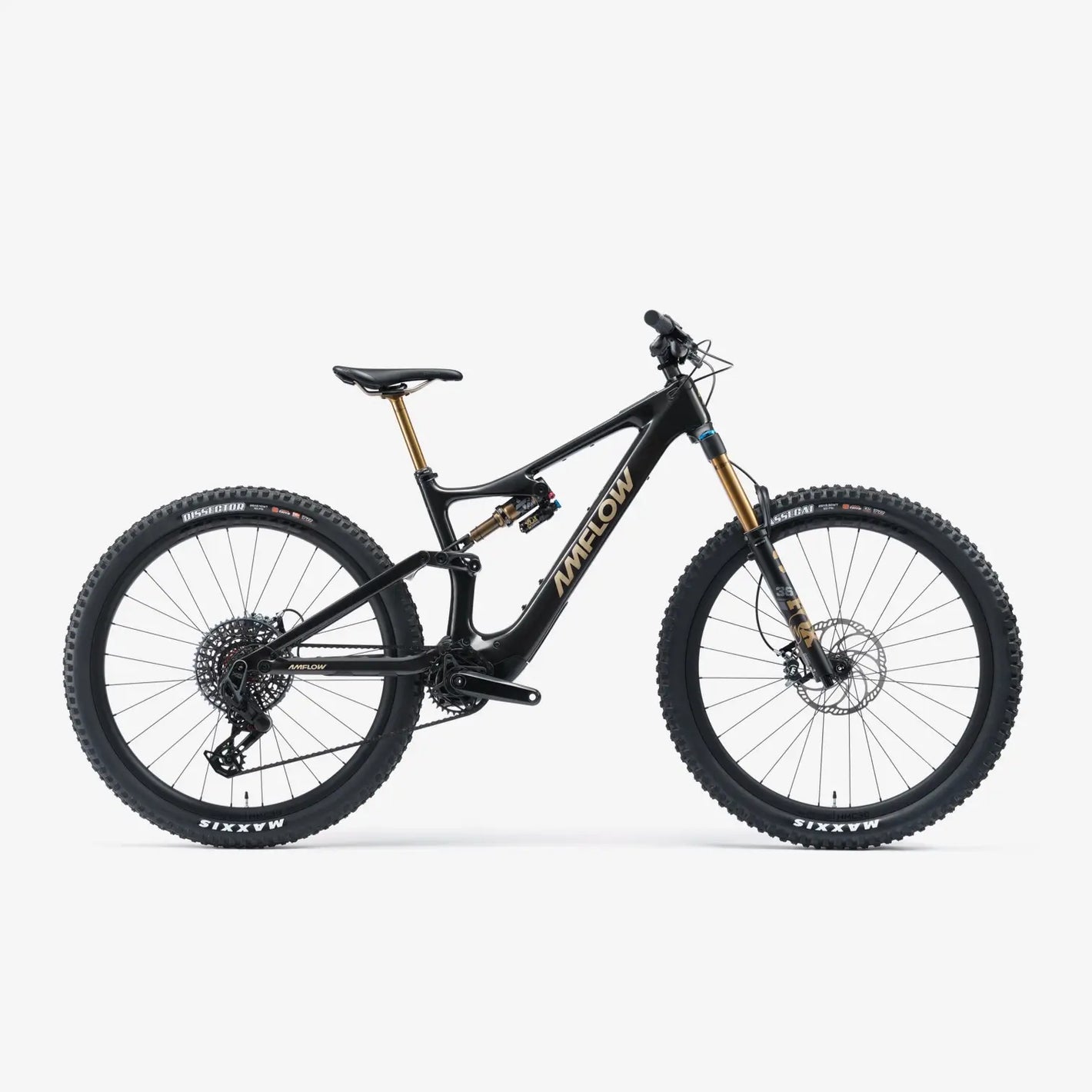

  • Amflow PL Carbon Pro (600Wh/800Wh)

  • Frame

    Amflow PL Carbon Frame

    Satin Silver

    150mm rear travel

    Compatible with 27.5" and 29" rear wheels

  • Frame

    Amflow PL Carbon Frame

    Cosmic Black

    150mm rear travel

    Compatible with 27.5" and 29" rear wheels

  • E-Bike System

    Avinox M1 Drive Unit: 105 N·m

    Avinox Screen: 2-inch OLED Control Display

    Avinox Integrated Battery: 800Wh

    Avinox Wireless Controllers: Right and left sides

    Avinox Fast Charger: 12A/508W

  • E-Bike System

    Avinox M1 Drive Unit: 105 N·m

    Avinox Screen: 2-inch OLED Control Display

    Avinox Integrated Battery: 600Wh/800Wh

    Avinox Wireless Controllers: Right and left sides

    Avinox Fast Charger: 12A/508W

  • Rear shock

    FOX Float Performance

    Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

  • Rear shock

    FOX FLOAT X Factory

    Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

  • Fork

    FOX 36 Performance

    160mm travel, GRIP Damper, 15×110mm, 44mm rake

  • Fork

    160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

  • Transmission

    Rear Derailleur: SRAM GX Eagle 12-speed

    Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

    Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click

    Cassette: SRAM PG-1230, 11-50T

    Chain: SRAM NX Eagle

    Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

  • Transmission

    Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable

    Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

    Shift Levers: SRAM AXS Pod Controller

    Cassette: SRAM XS-1295 Eagle Transmission 10-52T

    Chain: SRAM X0 Eagle Transmission Flattop Chain

    Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

  • Brakes

    Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

  • Brakes

    Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

  • Wheels

    Amflow HMA-30

    Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready

    Spokes: SAPIM E-Light J-bend

    Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

    Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

  • Wheels

    Amflow HMC-30

    Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready

    Spokes: SAPIM E-Light Straightpull

    Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt

    Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

  • Tires

    Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

    Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

  • Tires

    Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

    Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

  • Handlebar

    Amflow Enduro Alloy Handlebar

    35mm rise, 800mm wide

    5-degree upsweep, 9-degree backsweep

  • Handlebar

    Amflow Enduro Carbon Handlebar

    25mm rise, 800mm wide

    5-degree upsweep, 9-degree backsweep

  • Grips

    Amflow Enduro Grips

  • Grips

    Amflow Enduro Grips

  • Stem

    Amflow Enduro Stem, One-piece CNC

    Length: 35mm

    Clamping diameter: 35mm

  • Stem

    Amflow Enduro Stem, One-piece CNC

    Length: 35mm

    Clamping diameter: 35mm

  • Saddle

    Selle Royal SRX Plus

  • Saddle

    Ergon SM PRO M/L

  • Seatpost

    KS Rage-i

    M: 150mm

    L: 170mm

    XL/XXL: 190mm

  • Seatpost

    Fox Transfer Factory, Travel adjustable in 5mm

    M: 125-150mm

    L/XL: 155-180mm

    XXL: 185-210mm

  • Accessories

    Quick Start Guide

    Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

    Shock Pump

    Front and Rear Lights

  • Accessories

    Quick Start Guide

    Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

    Shock Pump

    Front and Rear Lights

Why Choose AMFLOW?

Integrated Elegance – A seamless union of timeless design and next-generation technology.

Mastered Control – Engineered with precision for fluid handling and confident command on any terrain.

Intelligent Performance – Subtle, intuitive tech that enhances your ride without ever overwhelming it.

Refined Simplicity – Purposeful design, free of excess—keeping you immersed in the ride.

Amflow isn’t just built to ride—it’s built to perform.

Whether you're powering up steep climbs or navigating technical descents, each eMTB delivers a smooth, responsive experience that keeps you in sync with the trail.

Dian Motors is thrilled to bring Amflow eMTBs to Canada. Stay tuned for dealership locations and availability.

Warranty Information

We've got you covered. We provide warranty repair service for the main parts manufactured by Amflow. You can apply for warranty repair service if the under-warranty product has a manufacturing defect.

The warranty periods for the main parts of the Amflow product are as follows:

1) Carbon Fiber Frame (Excl. Paint and Graphics): 5 years for the original owner; if transferred, the warranty will be limited to 2 years from the date of shipment from Amflow to the original owner.

2) Stem, Handlebar, Wheels, Paint and Graphics: 2 Years.

3) Accessories (Incl. Bike Lights, Bells, Pumps, and Torque Key): 1 Year.

This limited warranty specifically excludes any parts (including but not limited to transmission, brakes, and suspension) not manufactured by Amflow. However, Amflow is authorized by the manufacturer of the Drive System (including drive unit, battery, display, wireless remote, and charger) to provide warranty service in accordance with the warranty policy on the Drive System manufacturer’s official website. The warranty period for the Drive System is 2 years, and the battery is covered for 2 years with up to 500 charge cycles. Other parts are covered directly by the corresponding third-party manufacturer in accordance with their warranty policy.


For full details on Amflow’s warranty policy, please visit:
amflowbikes.com/ca/support/policy



For more details, visit Amflow Canada or contact Dian Motors today.
